MapReduce 实验

1 简介

1.1 实验环境

本实验主要使用 Ubuntu 20.04 64 位作为系统环境，采用 3 台 4 核 8GB 云服务器作为 Haddop 集群部署机器，使用的软件如下：

1.2 集群规划

2 在 IDEA 中创建项目

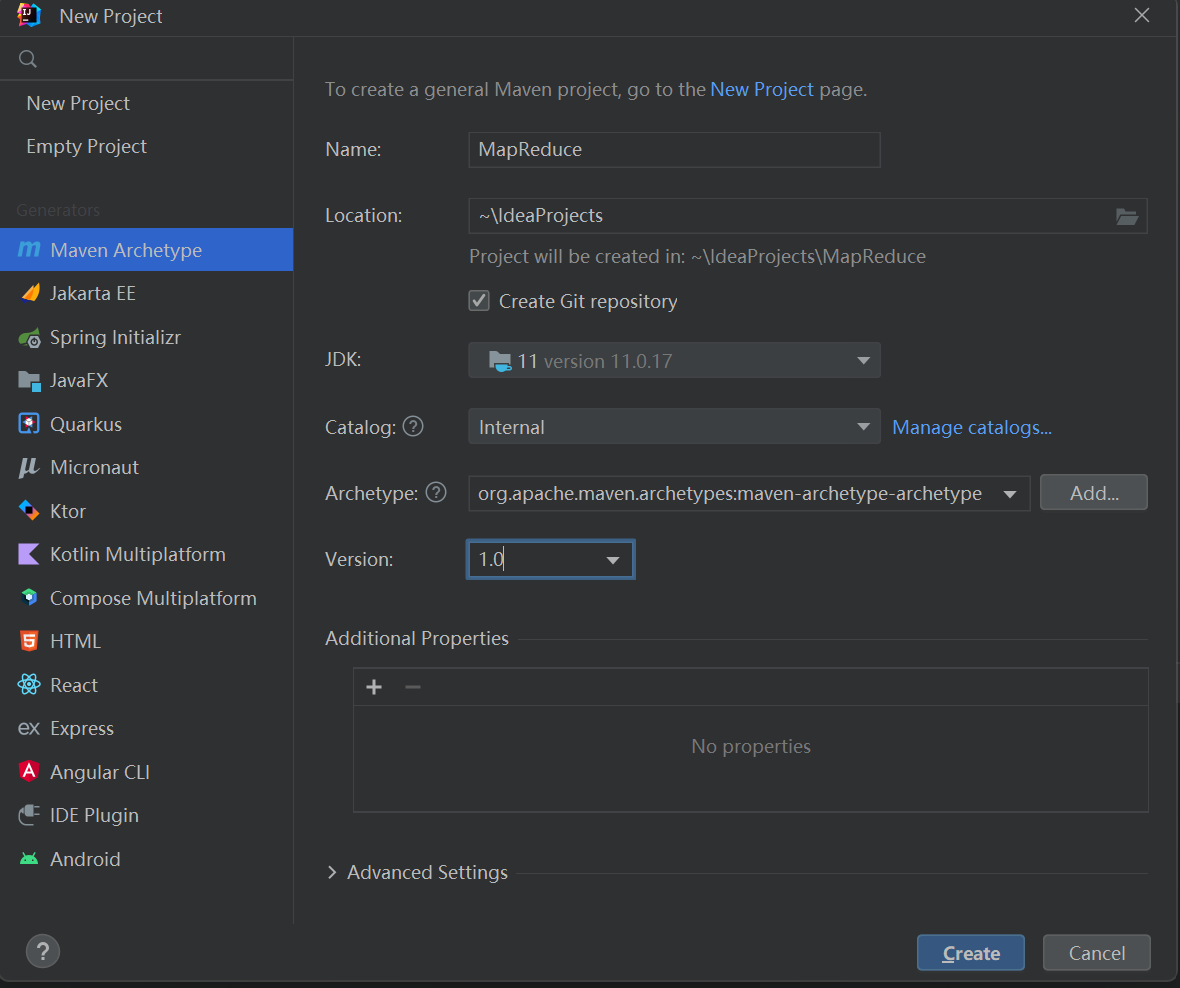

• 打开 IDEA 界面，点击File->New Project，选择Maven Archetype，创建一个名为MapReduce的 Maven 项目：



• 编写pom.xml 文件，内容如下：

  <?xml version="1.0" encoding="UTF-8"?>
  <project xmlns="http://maven.apache.org/POM/4.0.0"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
      <modelVersion>4.0.0</modelVersion>

      <groupId>com.cuterwrite</groupId>
      <artifactId>MapReduce</artifactId>
      <version>1.0-SNAPSHOT</version>

      <properties>
          <maven.compiler.source>11</maven.compiler.source>
          <maven.compiler.target>11</maven.compiler.target>
          <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
      </properties>
      <dependencies>
        <dependency>
          <groupId>org.apache.hadoop</groupId>
          <artifactId>hadoop-client</artifactId>
          <version>3.2.3</version>
        </dependency>
      </dependencies>
  </project>


3 编写 MapReduce 应用程序

• 分别编写IntSumReducer.java、TokenizerMapper.java、WordCount.java 文件：

  package com.cuterwrite;

  import org.apache.hadoop.io.IntWritable;
  import org.apache.hadoop.io.Text;
  import org.apache.hadoop.mapreduce.Reducer;

  import java.io.IOException;
  import java.util.Iterator;

  public class IntSumReducer extends Reducer<Text, IntWritable, Text, IntWritable> {
      private IntWritable result = new IntWritable();
      public IntSumReducer() {

      }
      public void reduce(Text key, Iterable<IntWritable> values, Reducer<Text, IntWritable, Text, IntWritable>.Context context)
              throws IOException, InterruptedException {
          int sum = 0;
          IntWritable val;
          for (Iterator<IntWritable> iterator = values.iterator(); iterator.hasNext(); sum += val.get()) {
              val = (IntWritable)iterator.next();
          }
          this.result.set(sum);
          context.write(key, this.result);
      }
  }


  package com.cuterwrite;

  import java.io.IOException;
  import java.util.StringTokenizer;

  import org.apache.hadoop.io.IntWritable;
  import org.apache.hadoop.io.Text;
  import org.apache.hadoop.mapreduce.Mapper;

  public class TokenizerMapper extends Mapper<Object, Text, Text, IntWritable> {
      private static final IntWritable one = new IntWritable(1);
      private Text word = new Text();
      public TokenizerMapper() {

      }
      public void map(Object key, Text value, Mapper<Object, Text, Text, IntWritable>.Context context) throws IOException, InterruptedException {
          StringTokenizer tokenizer = new StringTokenizer(value.toString());
          while (tokenizer.hasMoreTokens()) {
              this.word.set(tokenizer.nextToken());
              context.write(this.word, one);
          }
      }
  }


  package com.cuterwrite;

  import org.apache.hadoop.conf.Configuration;
  import org.apache.hadoop.fs.Path;
  import org.apache.hadoop.io.IntWritable;
  import org.apache.hadoop.io.Text;
  import org.apache.hadoop.mapreduce.Job;
  import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
  import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

  public class WordCount {
      public WordCount() {}
      public static void main(String[] args) throws Exception {
          Configuration conf = new Configuration();
          conf.set("fs.defaultFS", "hdfs://ha-cluster");
          conf.set("fs.hdfs.impl", "org.apache.hadoop.hdfs.DistributedFileSystem");

          String[] filePath = new String[] {
                  "hdfs://ha-cluster/user/root/input/news1.txt",
                  "hdfs://ha-cluster/user/root/input/news2.txt",
                  "hdfs://ha-cluster/user/root/input/news3.txt"
          };

          Job job = Job.getInstance(conf, "word count");
          job.setJarByClass(WordCount.class);
          job.setMapperClass(TokenizerMapper.class);
          job.setCombinerClass(IntSumReducer.class);
          job.setReducerClass(IntSumReducer.class);
          job.setOutputKeyClass(Text.class);
          job.setOutputValueClass(IntWritable.class);
          for (int i = 0; i < filePath.length ; i++) {
              FileInputFormat.addInputPath(job, new Path(filePath[i]));
          }
          String outputPath = "hdfs://ha-cluster/user/root/output/mapreduce";
          FileOutputFormat.setOutputPath(job, new Path(outputPath));
          System.exit(job.waitForCompletion(true) ? 0 : 1);
      }
  }


4 实验结果

• 将应用程序编译打包成 jar 包：

  mvn clean install


• 上传 jar 包至 HDFS 中的jars 目录下：

  hdfs dfs -put MapReduce-1.0-SNAPSHOT.jar jars


• 创建 input、output 目录，上传数据文件至 HDFS

  hdfs dfs -mkdir -p input
  hdfs dfs -mkdir -p output
  hdfs dfs -put news1.txt news2.txt news3.txt input


• 运行 jar 包：

  hadoop jar MapReduce-1.0-SNAPSHOT.jar com.cuterwrite.WordCount


• 查看执行结果：

  hdfs dfs -cat output/mapreduce/*
